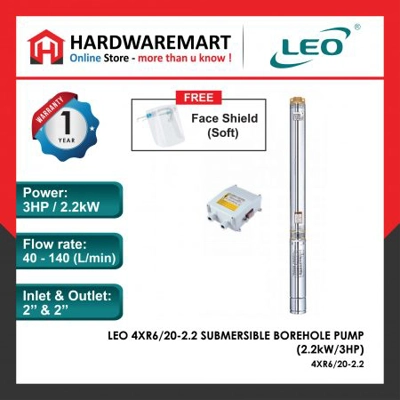

LEO 4XR6/20-2.2 SUBMERSIBLE BOREHOLE PUMP PLANTATION PAM AIR PERLADANGAN [3 PHASE] (2.2KW/3HP)

Description
FREE: FACE SHIELD (SOFT)




LEO THREE PHASE 4XR6/20-2.2 SUBMERSIBLE BOREHOLE PUMP (2.2kW/3HP)

Applications:

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation


Operating conditions

Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 3”


Motor and Pump

Rewindable motor or full obturated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906


Power: 2.2kW / 3HP
Flow: 40-140 L/min
Head: 132m-30m
Max suction: 80m
Outlet: 2’’
